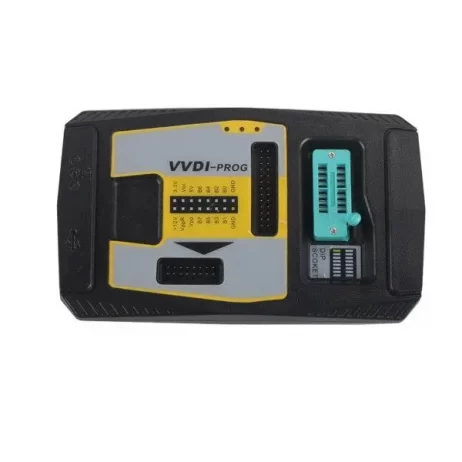

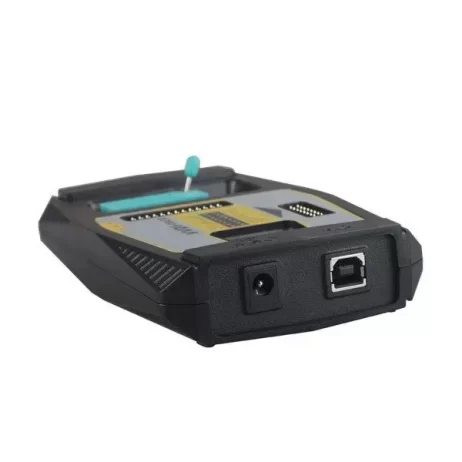

Original V5.0.0 Xhorse VVDI PROG Programmer

$ 1,077.30

Category:

Description

Original V5.0.0 Xhorse VVDI PROG Programmer

Why you Get VVDI Prog Programmer?
1. Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
2. Support chip data verify, check blank function
3. Support data file compare function
4. Support R&W BMW N20, N55 ECU ( show ISN directly )
5. Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6. Support renew PCF79XX remote, currently support BMW E/F series
7. Lots of connection diagram

8. Support Multi-language now: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish & Chinese Simplified

Buy VVDI Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service.

VVDI Prog V5.0.0 Update Information (2021-03-09)
VVDI Prog V5.0.0 Free Download

* This version DON’t need update firmware
+ Add VVDI PROG USER MUNUAL 5.0.0
version in Doc folder
+ Add MAC9116VAG50 options in
<2-MCU>->
+ Add MC68HC11A1,
MC68HC11A8,
MC68HC11EA9,
MC68HC11E1,
MC68HC11E9,
MC68HC11E20,
MC68HC11E32,
MC68HC11F1,
MC68HC11K4,
MC68HC11KA2,
MC68HC11KA4,
MC68HC11KG4,
MC68HC11KS2,
MC68HC11KW1,
MC68HC11P2,
MC68HC11PA8,
MC68HC11PH8,
MC68HC711E9,
MC68HC711E20,
MC68HC711EA9,
MC68HC711PH8 options in
<2-MCU>->
+ Add  FORD-ECU(AM29BDD160GB)
option in <3-ECU>->
+ Add  YUANJING-BCM(2015) option
in <4-IMMOBILIZER>->
+ Add  T600-SMARTBOX(2014)
option in <4-IMMOBILIZER>->
+ Add  ECOSPORT-DASHBOARD(2015)
option in <5-DASHBOARD>->
+ Add  REGAL-AIRBAG(2018) option in
<7-AIRBAG>->
+ Add  TOUAREG-CHASSIS-MODULE(2010)
option in <8-OTHER>->
* Fix some bug

VVDI Prog V4.9.9 Update Information (2021-02-03)
* This version DON’t need update
firmware
+ Add VVDI PROG USER MUNUAL 4.9.9
version in Doc folder
+ Add EPCS1,
EPCS16,
EPCS128,
EPCS4,
EPCS64 options in
<1-EEPROM&FLASH>->
+ Add AT59C11,
AT17C128,
AT17C256,
AT26DF081 options in
<1-EEPROM&FLASH>->
+ Add EN25x05,
EN25x10,
EN25x16,
EN25x20,
EN25x32,
EN25x40,
EN25x64,
EN25x80 options in
<1-EEPROM&FLASH>->
+ Add BR9010,
BR9020,
BR9040 options in
<1-EEPROM&FLASH>->
+ Add S-29255,
S-29355 options in
<1-EEPROM&FLASH>->
+ Add R5F10ExAx_Flash_16KB_Write,
R5F10ExCx_Flash_32KB_Write,
R5F10ExDx_Flash_48KB_Write,
R5F10ExEx_Flash_64KB_Write,
R5F10E_Data_4KB_Write
options in
<2-MCU>->
+ Add M30622F8,
M30623F8,
M3062CF8,
M30620FC,
M3062LFG,
M30626FH,
M30626FJ,
M30621FC,
M3062AFC,
M3062BFC,
M306N4FG,
M30625FG,
M30627FH,
M3062JFH,
M30627FJ,
M306N4FC
options in
<2-MCU>->
+ Add M30843FW,
M30843FH,
M30833FJ,
M30835FJ,
M30843FJ,
M30845FJ,
M30853FJ,
M30855FJ,
M30845FW,
M30853FW,
M30855FW,
M30845FH,
M30853FH,
M30855FH,
M30880FW,
M30882FW,
M30880FH,
M30882FH,
M30880FJ,
M30882FJ
options in
<2-MCU>->
+ Add R5F64525_UART,
R5F64524_UART
R5F6452M_UART,
R5F6452N_UART
options in
<2-MCU>->
+ Add R5F11N/11PxFx_Flash_96KB_Write,
R5F11N/11T/11RxGx_Flash_128KB_Write,
R5F11NxEx_Flash_64KB_Write,
R5F11N_Data_4KB__Write
options in
<2-MCU>->
+ Add R5F107xCx_Flash_32KB_Write,
R5F107xEx_Flash_64KB_Write,
R5F107_Data_4KB_Write
options in
<2-MCU>->
+ Add R5F10MxEx_Flash_64KB_Write,
R5F10MxGx_Flash_128KB__Write
options in
<2-MCU>->
+ Add R5F10Rx8x_Flash_8KB_Write,
R5F10RxAx_Flash_16KB_Write,
R5F10RxCx_Flash_32KB_Write,
R5F10R_Data_2KB__Write
options in
<2-MCU>->
+ Add R7F701201,
R7F701205,R7F701501,
R7F701502,R7F701503,
R7F701506,R7F701507,
R7F701508,R7F701511,
R7F701512,R7F701513,
R7F701521,R7F701522,
R7F701524,R7F701525,
R7F701526,R7F701527,
R7F701528,R7F701529,
R7F701530,R7F701531,
R7F701534,R7F701708,
R7F701709,R7F701710,
R7F701711,R7F701714,
R7F701715,R7F701644,
R7F701645,R7F701646,
R7F701647,R7F701648,
R7F701649,R7F701650,
R7F701651,R7F701652,
R7F701653,R7F701684,
R7F701685,R7F701686,
R7F701687,R7F701688,
R7F701689,R7F701690,
R7F701691,R7F701692,
R7F701693,R7F701694,
R7F701695,R7F701032,
R7F701371,R7F701372,
R7F701396,R7F701373,
R7F701374,R7F701397,
R7F701A22 options in
<2-MCU>->
+ Add D70F3461 option in
<2-MCU>->
+ Add CEM(R5F64524),
CEM(R5F64525)
options in
<4-IMMOBILIZER>->
+  Add LEXUS(R7F701A22) option in
<7-AIRBAG>->
+ Add B48(ADAPTER) option in
<10-BOSH-ECU-ADAPTER>->
* Fix some RH850 options
* Fix some STM8 options

VVDI Prog V4.9.8 Update Information (2020-12-31)
* This version DON’t need update firmware
+ Add VVDI PROG USER MUNUAL 4.9.8 version in Doc folder
+ Add AT25SF041 options in
<1-EEPROM&FLASH>->
+ Add AK93C45,
AK93C55,
AK93C65 options in
<1-EEPROM&FLASH>->
+ Add AT24RF08,
AT34C02 options in
<1-EEPROM&FLASH>->
+ Add EN25B05 options in
<1-EEPROM&FLASH>->
+ Add MB89RC04,
MB89RC16 options in
<1-EEPROM&FLASH>->
+ Add M24M01,
M24M02 options in
<1-EEPROM&FLASH>->
+ Add Y25F05 options in
<1-EEPROM&FLASH>->
+ Add R5F10Yx4x_Flash_1KB_Write,
R5F10Yx6x_Flash_2KB_Write,
R5F10Yx6x_Flash_4KB_Write
options in
<2-MCU>->
+ Add R5F105_Data_2KB_Write,
R5F105xAx_Flash_16KB_Write
options in
<2-MCU>->
+ Add R5F102/103x6x_Flash_2KB_Write,
R5F102/103x6x_Flash_4KB_Write,
R5F102/103x6x_Flash_8KB_Write,
R5F102/103x6x_Flash_12KB_Write,
R5F102/103x6x_Flash_16KB_Write
options in
<2-MCU>->
+ Add R5F113_Data_8KB_Write,
R5F113_Data_16KB_Write,
R5F113xGx_Flash_128KB_Write,
R5F113xHx_Flash_192KB_Write,
R5F113xJx_Flash_256KB_Write,
R5F113xKx_Flash_384KB_Write,
R5F113xLx_Flash_512KB_Write
options in
<2-MCU>->
+ Add CS75-HAND-BREAK-MODULE
option in <8-OTHERS->
+ Add FOCUS-BCM-R7F701053(2019)
option in <8-OTHERS->
+ Add MKC-BCM
option in <8-OTHERS->

VVDI Prog V4.9.5    (2020-08-24)
* This version DON’t need update firmware
* Fix RH86 bug
* Fix RH850 Series bugs
+ Add VVDI PROG USER MUNUAL 4.9.5
version in Doc folder
+ Add 24AA025,
24AA1025,
24AA1026 options
in<1-EEPROM&FLASH->
+ Add FOTON(MC9S12G128) option in
<4-IMMOBILIZER->
+ Add HC05X32(1D69J) option in
<4-IMMOBILIZER->
+ Add 300C-46 option in
<4-IMMOBILIZER->
+ Add S350-CONTROL-UNIT-PKE option in
<4-IMMOBILIZER->
+ Add MAXUS-V80 option in
<5-DASHBOARD->
+ Add CAPTU-AIRBAG option in
<7-AIRBAG->
+ Add VOLVO-AIRBAG(2020) option in
<7-AIRBAG->
+ Add C205-CHAIR-MODULE
option in <8-OTHERS->
+ Add FAW-BCM(MPC5603BxLQ)
option in <8-OTHERS->
+ Add BOYUE-PRO(2020)-PEPS-CONTROLLER
option in <8-OTHERS->
+ Add BOYUE-TIRE-PRESSURE-MODULE
option in <8-OTHERS->
+ Add VV5-TAILGATE(2017)
option in <8-OTHERS->
+ Add RFA-SECURED(SPC560B60L3)
option in <8-OTHERS->
+ Add MAGOTAN-LEFT-FRONT-DOOR-MODULE
option in <8-OTHERS->
+ Add MAGOTAN-REVERSING-RADER-MODULE
option in <8-OTHERS->

How To Update VVDI Prog Programmer Online?

This function require internet support
Click the “Upgrade” button enter the upgrade interface, show as following picture

Enter update interface, if software show ”communication with server failed”,please close your Anti-virus and computer firewall and retry. If software show “unable to find equipment”, please reconnect device
Tip information show the latest software version and upgrade information
Device information show the device SN, device firmware version and the latest firmware version

Firmware upgrade steps:
1. Select the firmware version
2. Click“Start Firmware Upgrade” button
3. Don’t close or pull out USB cable before upgrade finished

Software upgrade steps:
1. Click“Software Link 1″ or “Software Link 2” button, download software from the web
2. Extract the file

VVDI Prog Programmer Supported Type List:

Memory:
ATMEL,CATALYST,EXEL,FAIRCHILD,INTEL,MICROCHIP,MITSUBISHI,ST,TOSHIBA,XICOR

MCU:
RENESAS V850,RENESAS H8X,RENESAS R8C,MOTOROLA MC68HC(9)08,MOTOROLA MC68HC(9)12
MOTOROLA MC9S08,MOTOROLA MC9S12,NXP PCF79XX,ST ST10F,INFINEON XC2XXX,ATMEL,ATMEGA XXXX,
INFINEON XC164CS,MICROCHIP PIC18F,

VVDI Prog Programmer Support Model List:

ECU List:
BMW E Series,BMW F Series,BOMBARDIER,CHANGAN,DELPHI,MAGNETI,MARELLI,RENAULT,OTHER

IMMOBILIZER List:
AUDI,BENZ,BMW,BUCIK,CHEVROLET,STEC,CHRYSLER,FIAT,FORD,GREATWALL,INFINITI,LANDROVER,
JAGUAR,NISSAN,OPEL,PORSCHE,RENAULT,SAICMOTOR,VOLKSWAGEN,ZHONGHUA.

DASHBOARD List:
BUICK,CHANGAN,CHERY,CHEVROLET,DONGFENG,FAW,FORD,GEELY,GREATWALL,HAFEI,TOYOTA,
HANTENG,HAIMA,HONDA,JAC,JAGUAR,JINBEI,JMC,LUXGEN,NISSAN,SGMW,VOLOVO,ZHONGHUA,ZOTYE

REMOTE List:
BMW E Series,BMW F Series

VVDI PROG Connection for Maybach:

VVDI Prog Connection for Sprinter:

VVDI Prog Programmer Unit Description:

1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction

2. MCU Reflash Cable
    Function:       Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
   Use method: Soldering the line on pin of chip before read & write
  Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

3. ECU Reflash Cable
        Function:          Read & Write engine ECU
        Use method:   Connect the ECU and R&W
        Notes:               Please check all connection lines, ensure correct and reliable connection

4.MC9S12 Reflash Cable
     Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
     Use method: Soldering the line on pin of chip before read & write
     Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

VVDI Prog Programmer Feedback:

did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing
Tested by me: cas 2, cas 3, cas 3+, Cas4 5m48h, volvo cem v40 all ok.
Is a very good tool and for bmw cas4 .
I tested today D80 and a m35080v6, and they work perfect.
Mine erased D160 (BMW F01 dash) with no problem.
Tried to renew bmw e series 868 key. Vvdi programmer claimed operation success but in tango key is now recognized as transponder type A. locked
I did renew 2 keys! Both worked and now are programmed to cars!
Only thing you need to disconnect from PCB is battery while writing the renew file. (Remove the batteries)
Renew BMW series E 868 key – 100% OK z vvdi-prog v4.5.7
FRM3 works perfectly
More EDC17 under ECU section would be great!
Especially BMW EDC16 and EDC17 for ISN purposes.
BMW F series FEM module reading but for that i can only dream about…
BMW BMSX bike ECU would be great…
Renew pcf7946 and 29f family
Renew E series remote with pcf7942 / pcf7944 would be fine
Unlock and download the 9S12G128 secure without erasing it first would be nice .
erasing all 35080s and d80 with soic clip would be super nice too!
I read the CAS3+ MCU with VVDI Prog and that worked perfect.
BMW FRM3 series Exx – READ and WRITE – OK
BMW KEY series Exx – OK
BMW DashBoard 6WB 160DQWT – READ , ERASE , WRITE – OK

VVDI Prog Reviews:

2004 Suzuki Jimny:
The first job i did with this kit was actually a 2004 Suzuki Jimny, literally within around 30 – 45 minutes of the parcel being delivered. The software was quick and easy to install (No cd provided, need to download from dealer website and update to latest version).

Anyway, for the Suzuki i used the VVDI-prog with the EEPROM clip adapter to read the immobox 24c01 in-circuit. Then using the VVDI2 immobiliser data tool, i was able to create a dealer key with an Xhorse 4d/4c chip. Write the new dump back to the immobox with VVDI-prog, put it all back together and worked first time thankfully after previous failed attempts with other devices.
Anyway end goal complete and happy with the new purchase

BMW EWS3:
I did some testing on the bench with a BMW EWS3 using VVDI2 with the CAS adapter cable (Needs external 12Vdc supply). It reads the EWS ok, but can’t write a file back to EWS.
I will try reading the EWS3+ that is in my car and produce a dealer key for it.

The file change km’ seems to read from dump ok, and will allow you to modify file with new km (untested on car though). If i get some time later on will try read/write with VVDIprog.

VVDI Prog FAQs:

Q 1: My vvdiprog fell on the floor, I plug into usb, the drivers in device manager are good, but always say “device error, check USB driver.”
I had installed on both laptops same problem so i disassembled the device found out that the battery 3V inside was lose negative i soldered again but its the same.
A 1: If battery was removed, security data is gone. You need to send it for repair.
There is nothing you can do on your own.

VVDI Prog Programmer Package List:

  1. VVDI Prog device
    2. EEPROM Socket
    3. EEPROM Adapter
    4. MC9S12 Reflash Cable V1
    5. MCU Reflash Cable
    6. ECU Reflash Cable
    7. USB B-Tyte Cable
    8. TF28FXXX Adapter (Optional)
    9. PCF79XX Adapter (Optional)
    10. M35080/D80 Adapter (Optional)
    11. EWS3 Adapter (Optional)
    12. EEPROM CLIP Adapter (Optional)
    13.
    EWS4 Adapter (Optional)

VVDI Prog Programmer Unit Description:

1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction

2. MCU Reflash Cable
    Function:       Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
   Use method: Soldering the line on pin of chip before read & write
  Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

3. ECU Reflash Cable
        Function:          Read & Write engine ECU
        Use method:   Connect the ECU and R&W
        Notes:               Please check all connection lines, ensure correct and reliable connection

4.MC9S12 Reflash Cable
     Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
     Use method: Soldering the line on pin of chip before read & write
     Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

VVDI Prog Programmer Supported Type List:

Memory:
ATMEL,CATALYST,EXEL,FAIRCHILD,INTEL,MICROCHIP,MITSUBISHI,ST,TOSHIBA,XICOR

MCU:
RENESAS V850,RENESAS H8X,RENESAS R8C,MOTOROLA MC68HC(9)08,MOTOROLA MC68HC(9)12
MOTOROLA MC9S08,MOTOROLA MC9S12,NXP PCF79XX,ST ST10F,INFINEON XC2XXX,ATMEL,ATMEGA XXXX,
INFINEON XC164CS,MICROCHIP PIC18F,

VVDI Prog Programmer Support Model List:

ECU List:
BMW E Series,BMW F Series,BOMBARDIER,CHANGAN,DELPHI,MAGNETI,MARELLI,RENAULT,OTHER

IMMOBILIZER List:
AUDI,BENZ,BMW,BUCIK,CHEVROLET,STEC,CHRYSLER,FIAT,FORD,GREATWALL,INFINITI,LANDROVER,JAGUAR,NISSAN,OPEL,PORSCHE,RENAULT,SAICMOTOR,VOLKSWAGEN,ZHONGHUA.

DASHBOARD List:
BUICK,CHANGAN,CHERY,CHEVROLET,DONGFENG,FAW,FORD,GEELY,GREATWALL,HAFEI,TOYOTA,HANTENG,HAIMA,HONDA,JAC,JAGUAR,JINBEI,JMC,LUXGEN,NISSAN,SGMW,VOLOVO,ZHONGHUA,ZOTYE

REMOTE List:
BMW E Series,BMW F Series

VVDI Prog Programmer Feedback:

did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing
Tested by me: cas 2, cas 3, cas 3+, Cas4 5m48h, volvo cem v40 all ok.
Is a very good tool and for bmw cas4 .
I tested today D80 and a m35080v6, and they work perfect.
Mine erased D160 (BMW F01 dash) with no problem.
Tried to renew bmw e series 868 key. Vvdi programmer claimed operation success but in tango key is now recognized as transponder type A. locked
I did renew 2 keys! Both worked and now are programmed to cars!
Only thing you need to disconnect from PCB is battery while writing the renew file. (Remove the batteries)
Renew BMW series E 868 key – 100% OK z vvdi-prog v4.5.7
FRM3 works perfectly
More EDC17 under ECU section would be great!
Especially BMW EDC16 and EDC17 for ISN purposes.
BMW F series FEM module reading but for that i can only dream about…
BMW BMSX bike ECU would be great…
Renew pcf7946 and 29f family
Renew E series remote with pcf7942 / pcf7944 would be fine
Unlock and download the 9S12G128 secure without erasing it first would be nice .
erasing all 35080s and d80 with soic clip would be super nice too!
I read the CAS3+ MCU with VVDI Prog and that worked perfect.
BMW FRM3 series Exx – READ and WRITE – OK
BMW KEY series Exx – OK
BMW DashBoard 6WB 160DQWT – READ , ERASE , WRITE – OK

Reviews

There are no reviews yet.

Be the first to review “Original V5.0.0 Xhorse VVDI PROG Programmer”

Your email address will not be published. Required fields are marked *
